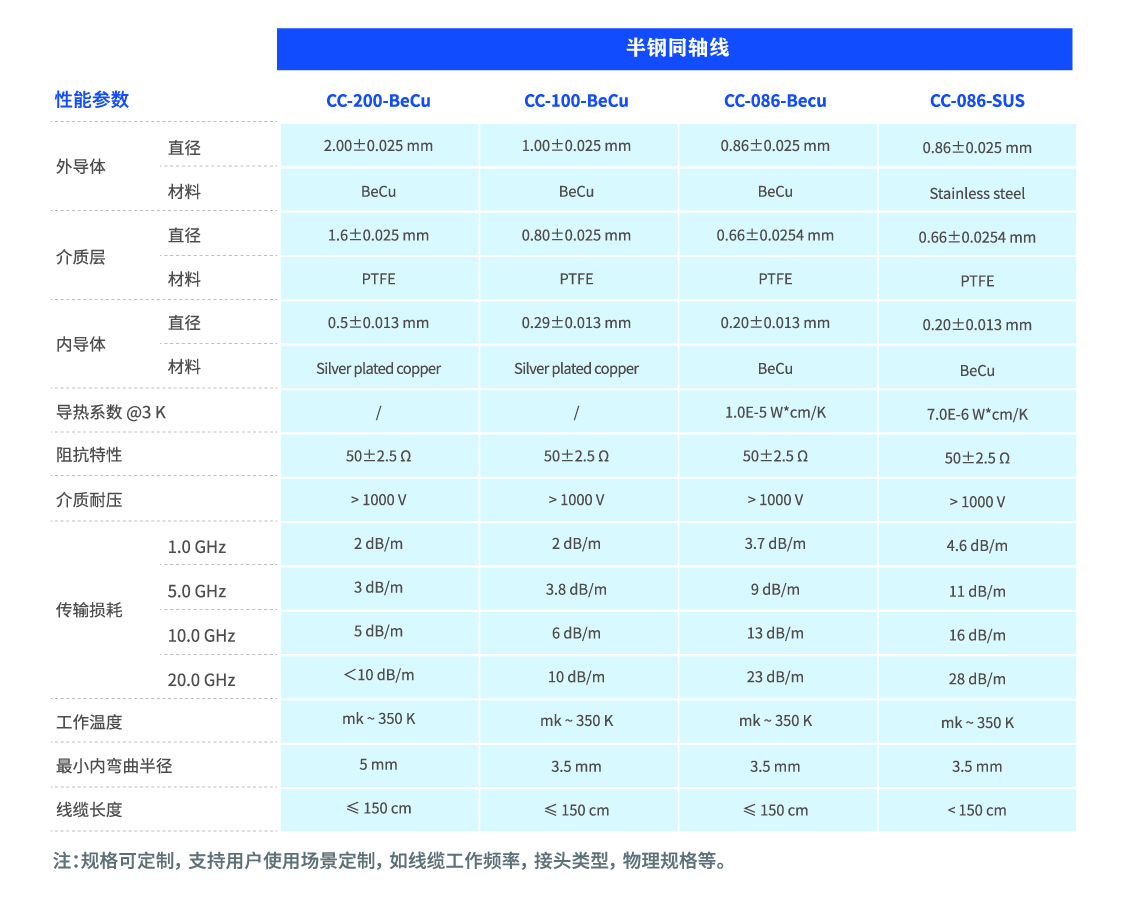

低温同轴线 @1m
|
|
Impedance
|
50Ω
|
|
Capacitance
|
96.2 pF/m
|
|
Inner conductor
|
OD. 0.203mm,Beryllium copper
|
|
Insulation
|
OD. 0.66mm,PTFE
|
|
Shield layer
|
OD. 0.86mm,Beryllium copper
|
|
Heat quantity(uW/K):
|
28 (4K-20K), 94(4K-100K)
|
|
Attenuation (dB/m)
1 MHz 100 MHz 500 MHz 1 GHz 2GHz 5GHz 9Ghz
0.4±0.05 1.2±0.05 2.65±0.05 3.7±0.05 5.2±0.05 8.2±0.2 11.1±0.3
|
